Spray Metal Casting And Its Working

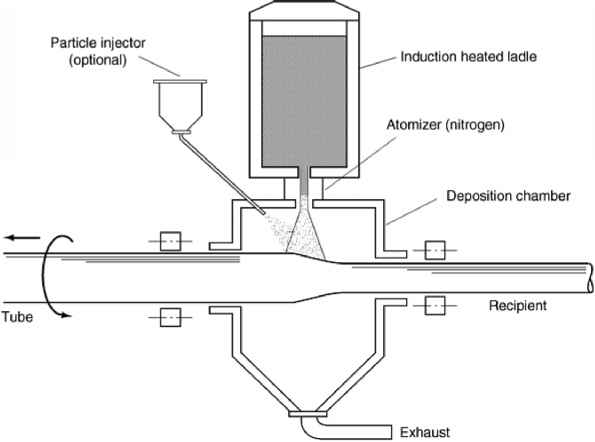

For making metallic pipes, a continuous casting method, known as Osprey process is utilized. This method is cheaper to produce metallic pipes in comparison to traditional pipe manufacturing techniques. In this process the molten metal is sprayed over a rotating mandrel to produce seamless tubing and pipes. The Osprey process is essentially a rapid solidification technique for the direct conversion of liquid metal into shaped preforms by means of an integrated gas-atomizing /spray-depositing operation. In the osprey process, a controlled stream of molten metal is poured into a gas-atomizing device where it is impacted by high-velocity jets of gas , usually nitrogen or argon. The resulting spray of metal particles is directed onto a "collector" where the hot particles re-coalesce to form a highly dense preform.
