ERICSSON CYCLE (1850) AND ITS PROCESS

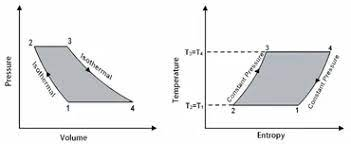

The Ericsson cycle is made up of two reversible isotherms and two reversible isobars.

For 1 kg Of Ideal gas

Q1-2 = W1-2 = RT1 ln (P1 / P2)

Q2-3 = Cp (T2 - T1) ; W2-3 = P2 (V3-V2) = R ( T2 - T1 )

Q3-4 = W3-4 = - RT2 ln ( P1 / P2 )

Q4-1 = Cp (T1-T4) ; W4-1 = P1(V1 - V4) = R (T1 - T2)

Since part of the heat is transferred at constant pressure and part at constant Temperature, the efficiency of the Ericsson Cycle is less than that of the Carnot cycle. But with ideal regeneration Q2-3 = Q4-1 so that all the heat is added from external source at T1 and all the heat is rejected to an external sink at T2, the efficiency of the cycle becomes equal to the Carnot cycle efficiency, since

N = 1 - (Q2 / Q1) = 1 - (T2 / T1)

The regenerative, Stirling and Ericsson cycles have the same efficiency as the Carnot cycle, but much less back work. Both cycles utilize regeneration, a process during which heat is transferred to a thermal energy storage device called a regenerator during one part of the cycle and is transferred back to the working fluid during another part of the cycle. Hot air engines working on these cycles have been successfully operated. But it is difficult to transfer heat to a gas at high rates, since the gas film has a very low thermal conductivity. So there has not been much progress in the development of hot air engines. However, since the cost of internal combustion engine fuels is getting excessive, these may find a field of use in the near future.

Comments

ELECTRICAL COMPARATORS AND ITS WORKING

Electrical Comparators are used as a means of detecting and amplifying small movements of a work contacting elements. An electrical comparator consists essentially of a pick-up head or transducer for converting a displacement into a corresponding change in current and a meter or recorder connected in the circuit to indicate the electrical change, calibrated to show in terms of displacement. Generally, an amplifier is needed to provide the requisite sensitivity and to match the characteristics of different parts of the circuit. Electrical comparators can be classified according to the electrical principle used in the pick-up head. Most of the comparators use either a differential transformer, an inductance bridge, a strain gauge or a capacitor as a means of detecting movement of the gauging element. There are different types of electrical comparators. One kind called an electrolimit gauge is used to check or measure the outside diameter of a roll. The objec...

SIMPLE CARBURETOR - CONSTRUCTION AND WORKING

CONSTRUCTION OF SIMPLE CARBURETOR : The main Components of Simple Carburetor are : Float Chamber, float, nozzle, venturi, throttle valve, inlet valve, and metering jet . In the float chamber, a constant level of petrol is maintained by the float and a needle valve. The float chamber is ventilated to atmosphere. This is used to maintain atmospheric pressure inside the chamber. The float which is normally a metallic hollow cylinder rises and closes the inlet valve as the fuel level in the float chamber increases to certain level. The mixing chamber contains venturi, nozzle and throttle valve. The venturi tube is fitted with the inlet manifold. This tube has a narrow opening called venturi. A nozzle is provided just below the centre of this venturi. The nozzle keeps the same level of petrol as that of the level in the float chamber. The mixing chamber has two butterfly valves. One is to allow air into the mixing chamber known as choke valve. The other is to al...

TOP POLLUTION RECORDED IN WORLD

CHERNOBYL NUCLEAR DISASTER (NUCLEAR POLLUTION) : In April 26,1986, the melt down of the Chernobyl nuclear reactor , in Russia, has leaked out the radioactive rays and radioactive materials. Effects : 1. In this Pollution nearly 2000 persons have been killed by the accident. 2. People suffered due to the illness such as, degeneration of the cells, severe bleeding, anemia, skin cancer. 3. Animals, Plants are also affected by nuclear radiation. MINAMATA EPIDEMIC (1953) : MARINE POLLUTION ( CASE STUDY ) Minamata is a small coastal village in Japan. The Chisso Chemical Company , which produces vinyl polymer plastics used organomercurial compound. The industry released its effluent into Minamata sea. The effluent containing mercury ions is converted into methyl mercury, which is highly toxic. The marine organisms like phytoplankton and zoo-planktons easily absorb the toxic methyl mercury compound. These organisms are consumed by small fishes and these are in ...
